Elastic Network Data Storage

3U 16-bay Expandable NAS Server

LucidFiler RN2316 offers rackmountable data storage server with simple management at a competitive price. Designed with the needs of a growing business in mind, it offers an easy-to-manage, “building block” appliance with excellent storage capacity to build out your storage infrastructure. Network-attached storage allows everyone – servers and clients – to access the same data pool simultaneously while the web interface gives you administrative control of your appliance from any web-enabled device, making data management that much more convenient.

The LucidFiler RN2316 server is powered by the LucidNAS storage software and features ZFS filesystem support which includes data integrity protection, periodic snapshots, automatic repair, and RAID-Z to help manage and store your critical files safely and corruption-free.

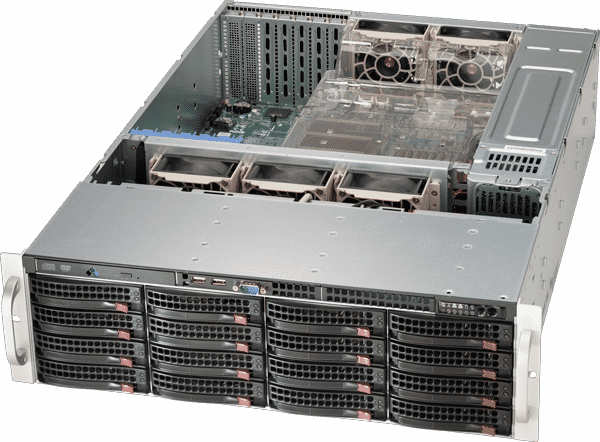

LucidFiler RN2316 16-bay Rackmount NAS

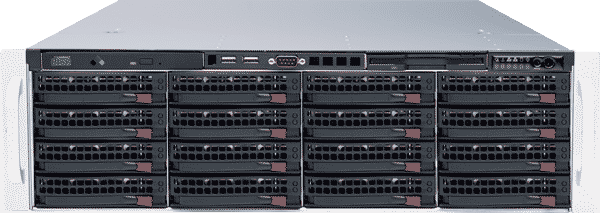

RN2316 NAS Storage Server Front View

Storage that grows with your business.



PRODUCT IMAGES

  • Sixteen drive bays – up to 48TB of data storage capacity
  • Software mirroring, RAIDZ, RAIDZ2, or RAIDZ3 configuration
  • 64-bit Quad-Core Intel Xeon processor
  • 16GB of DDR3 memory upgradeable to 512GB
  • 4 x 1GbE Network interface (Onboard) – Optional 10GbE ports available
  • Dual Redundant 920W High-Efficiency power supplies
  • Unified Storage – iSCSI block-level and SMB / NFS file-level access
  • Simultaneous support for Windows, UNIX, and Apple shares
    • 3U Expandable Unified Storage Server
    • Dual Intel® Xeon® processor E5-2600 family
    • 16 Hot-swap 3.5″ SAS2 (with LSI expander) / SATA3 HDD Bays;
    • Onboard LSI 2308 IT mode / HBA; Dual JBOD expansion ports
    • 16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
    • 5 (x8) PCI-E 3.0 expansion slots
    • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
    • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
    • 3 heavy duty fans w/ optimal fan speed control
    • 920W Redundant Platinum Level Power Supplies
Software Specifications
Filesystem• 128-bit Zettabyte File System
• Unlimited filesizes
• Unlimited snapshots
• Copy-on-write clones
Data Protection• Multiple RAID Protections – Striping, N-way mirroring, RAID-Z(single parity), RAID-Z2(double parity), RAID-Z3 (triple parity)
• File cloning
• End-to-end checksumming
Hardware Support• SAS & SATA Drive Support (traditional and solid state/flash)
• Hot Spare Drive Support
• SMP—Multiple CPU / Multiple Core Support
• Gigabit and 10 Gigabit Ethernet Support
• Multiple Load Balancing / Failover NIC Support
• Infiniband Support
Network Protocols• NFS (UNIX-based clients)
• CIFS/SMB (Windows-based clients)
• AFP (Apple-based clients)
• iSCSI (block level access / Storage Area Network)
• HTTP / SSH / FTP / SMTP
Hardware Technical Specifications
Chassis
Form Factor3U Rackmount
Processor/Cache
CPUIntel® Xeon® processor E5-2600
Dual Socket R (LGA 2011)
CacheUp to 20MB
System BusQPI up to 8 GT/s
System Memory
Memory Capacity16x 240-pin DDR3 DIMM sockets
Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage1.5 V, 1.35 V
Error DetectionCorrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
ChipsetIntel® C602J Chipset
SATASATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SASSAS2 via LSI 2308; IT Mode/Pass-through
IPMISupport for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network ControllersIntel® i350 Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
GraphicsMatrox G200eW

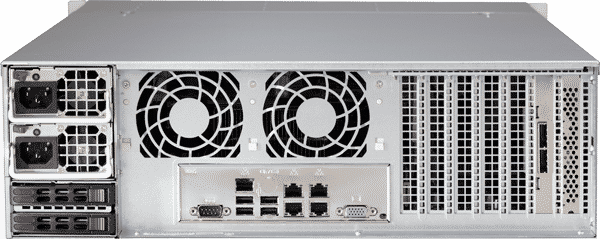

Input / Output
Serial ATA2x SATA 3.0 ports (6Gbps)
4x SATA 2.0 ports (3Gbps)
SAS8x SAS2 ports (6Gbps)
LAN4x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
JBOD2x JBOD Expansion Port
USB9x USB 2.0 ports total
(4 rear + 4 via header + 1 Type A)
VGA1x VGA port
Serial Port / Header1x Fast UART 16550 port / 1 Header
Dimensions
Width17.2" (437mm)
Height5.2" (132mm)
Depth25.5" (648mm)
Gross Weight79 lbs (35.8 kg)
Front Panel
ButtonsPower On/Off button
System Reset button
LEDsPower status LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED
Expansion Slots
PCI-Express5x PCI-E 3.0 x8 slots (Full-height, Half-length)
Drive Bays
Hot-swap16x Hot-swap 3.5" SAS/SATA HDD trays
Optional OS Drive2x Rear 2.5" Hot-swap Drive Bays
System Cooling
Fans3x 80mm Hot-swap 4-pin PWM Fans
2x 80mm Rear-exhaust 4-pin PWM Fans
Operating Environment / Compliance
RoHSRoHS Compliant
Environmental Spec.Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

  • Fileserver
  • DVR / Video Surveillance
  • Datastore for vmWare, Xen, VirtualBox Virtual Machines
  • Database Server
