High Capacity Storage Expansion
Optimized for high-capacity storage applications, Lucid LJ-2328 JBOD chassis features 28x (16 front + 12 rear) hot-swap 3.5″ SAS/SATA hard drive bays in a 3U space. The LJ-2328 JBOD’s design offers extra high-density of HDD per space ratio in a 3U form factor, high power efficiency, optimized HDD signal trace routing and improved HDD tray design to dampen HDD vibrations and maximize performance. Equipped with redundant high-efficiency 1620W/920W (Platinum Level) power supplies with PMBus functionality and I2C for enhanced power management, and 5 hot-plug redundant cooling fans, the LJ-2328 JBOD is a reliable and maintenance-free storage system.
LJ-2328 28-bay Storage Expansion JBOD
Simple and reliable storage.

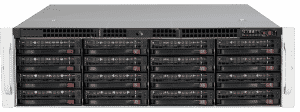

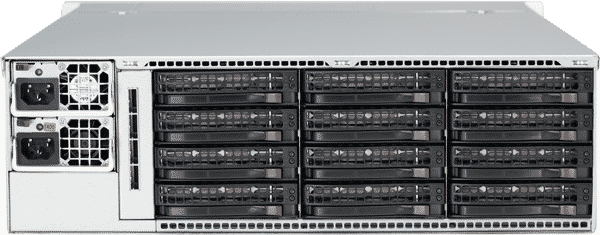

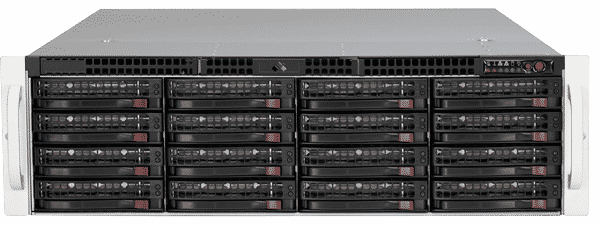

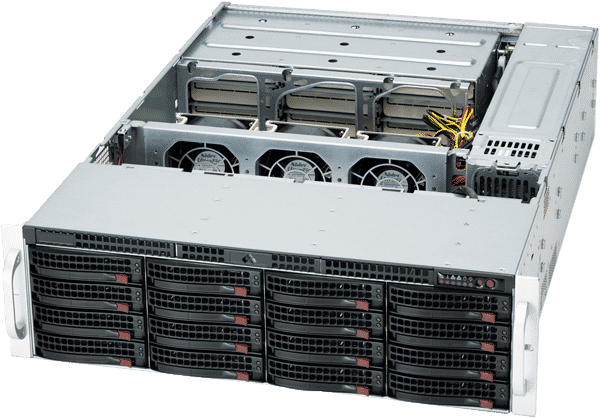

PRODUCT IMAGES
| Features | Benefits |
|---|
| Features | Benefits |
| Single SAS Expander or Dual SAS Expander mode of operation for redundant failover | High availability and redundancy |
| Hot-pluggable I/O controller(s) and dual redundant high efficiency power/cooling (APC) modules | Reliability and ease of servicing in the field |
| Two SFF-8088 6Gb/sec SAS 2.0 host and expansion connections per SAS I/O Controller | High performance with 6Gb/s data transfer rates |
| Up to 28 SAS/SATA HDDs | Space saving and power saving design |
| SAS daisy-chain expansion up to four JBODs via SFF-8088 SAS cables | Nearly limitless capacity expansion |
| Modular design increases product configuration flexibilility | |
| SAS Point-to-point connectivity isolates drive failures, increases reliability and fault tolerance, and improves performance | |
| Supports major operating systems | |
| Three-year standard warranty | |
| Technical Specifications |
| Host Ports | Four 6Gb/s SAS2 ports (dual expanders)
Two 6Gb/s SAS2 ports (single expander) |
| Drive Support | 28x (16 front + 12 rear) 3.5" Hot-swap HDD bays
SAS or enterprise SATA HDD only recommended |
| Form Factor | 3U Rackmount |
| System LED | Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power Fail LED |
| High-Availability and Resiliency | Redundant Power Supplies
Redundant Hot Pluggable Cooling System
Hot-Swap Drives
|
| Power Supply | 1620W high-efficiency (1+1) redundant power supply with PMBus
AC voltage:
- 1000W: 100-120 V, 50-60 Hz, 12-10 Amp
- 1200W: 120-140 V, 50-60 Hz, 12-10 Amp
- 1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp
Certification 80 PLUS Platinum Certified |
| Environmental | Temperature: 5°C - 35°C (41°F - 95°F) operating/ -40°C - 70°C (-40°F - 158°F) non-operating
Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
Relative humidity: 8 to 90% non-condensing, operating
|
| Dimensions | Height: 5.2" (132mm)
Width: 17.2" (437mm)
Depth: 25.5" (648mm)
|
| Weight | Without HDDs:32.7kg (72lbs) |
