Extremely Dense Double-Sided Storage JBOD
The Lucid LJ-2488 JBOD chassis features extremely high storage density with maximum of 88 x 2.5″ hot-swap drives per enclosure. The chassis also features high-availability with 1400W Gold Level (1+1) redundant power supplies and 7x 8cm hot-swap cooling fans. The Lucid LJ-2488 JBOD series chassis is ideal for a number of applications: DB/File Server, Data Warehouse, iSCSI, Media/Stream Server, Video-on-Demand, Security Server, and more.
LJ-2488 88-bay Storage Expansion JBOD
Small footprint. Huge capacity.

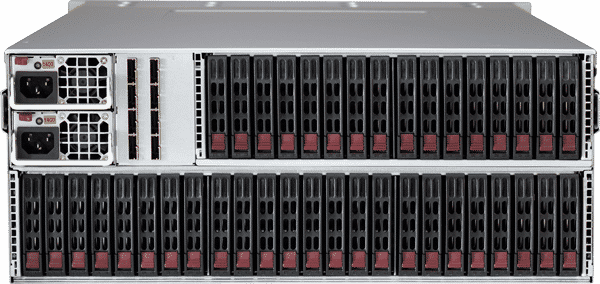

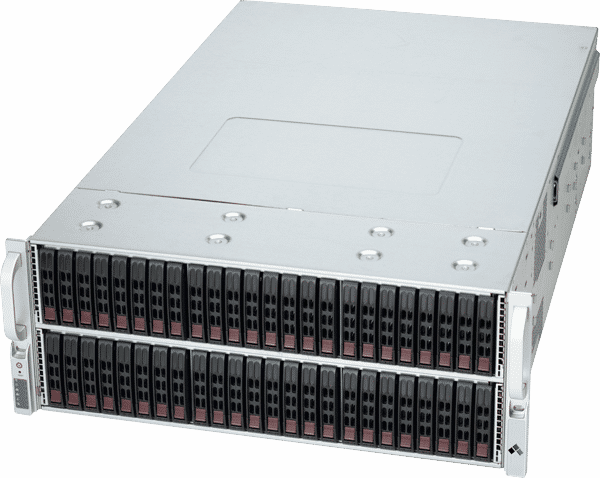

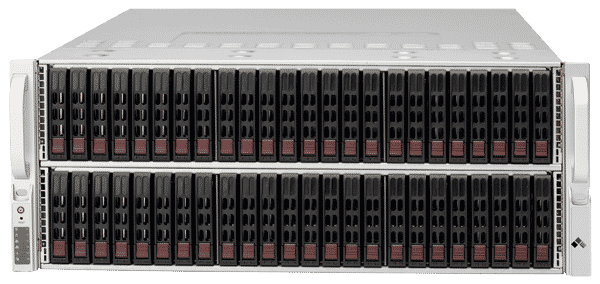

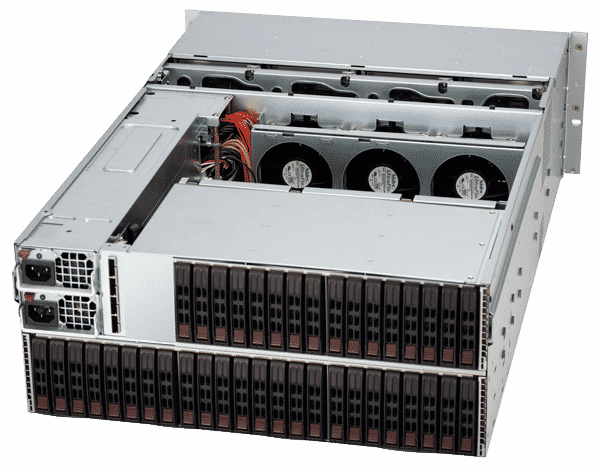

PRODUCT IMAGES
| Features | Benefits |
|---|
| Features | Benefits |
| Single SAS Expander or Dual SAS Expander mode of operation for redundant failover | High availability and redundancy |
| Hot-pluggable I/O controller(s) and dual redundant high efficiency power/cooling (APC) modules | Reliability and ease of servicing in the field |
| Two SFF-8088 6Gb/sec SAS 2.0 host and expansion connections per SAS I/O Controller | High performance with 6Gb/s data transfer rates |
| Up to 88 SAS/SATA 2.5" HDDs | Space saving and power saving design |
| SAS daisy-chain expansion up to four JBODs via SFF-8088 SAS cables | Nearly limitless capacity expansion |
| Modular design increases product configuration flexibilility | |
| SAS Point-to-point connectivity isolates drive failures, increases reliability and fault tolerance, and improves performance | |
| Supports major operating systems | |
| Three-year standard warranty | |
| Technical Specifications |
| Host Ports | Four 6Gb/s SAS2 ports (dual expander)
Two 6Gb/s SAS2 ports (single expander) |
| Drive Support | 88x (48front + 40 rear) 2.5" Hot-swap HDD bays |
| SAS2, SAS, or Enterprise SATA HDD recommended |
| Form Factor | 4U Rackmount |
| System LED | Power LED |
| Hard drive activity LED |
| 2x Network activity LEDs |
| System Overheat LED |
| Power Fail LED |
| High-Availability Features | Redundant Power Supplies |
| Redundant Hot Pluggable Cooling System |
| Hot-Swap Drives |
| Power Supply | 1400W high-efficiency (1+1) redundant power supply with PMBus AC voltage: |
| - 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz |
| - 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz |
| 80 PLUS Gold Certified |
| Environmental | Temperature: 5°C - 35°C (41°F - 95°F) operating;
-40°C - 70°C (-40°F - 158°F) non-operating |
| Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating |
| Relative humidity: 8 to 90% non-condensing, operating |
| Chassis Dimensions | Height: 7" (178mm)
Width: 17.2" (437mm)
Depth: 27.5" (699mm)
|
| Weight | Without HDDs:36.3kg (80lbs) |
