1U 20-bay All-flash Expandable NAS for High Performance Workloads

LucidFlash SS3120 All-flash NAS has been engineered to accelerate and simplify SMB storage infrastructure. LucidFlash is 100% solid state and provides a complete set of robust features to make the applications run faster and more efficiently. Packed in a tiny 1U footprint, it offers rackmountable data storage server that takes critical business applications, like databases and email, to breakthrough performance levels, all with simple management and at a competitive price. Thanks to its extreme performance capabilities, LucidFlash leverages a multitude of storage efficiency technologies to meet the demands of a typical enterprise.

LucidFlash NAS is optimized for the native capabilities of flash and yields significant performance improvements over legacy storage solutions especially in how it handles write traffic and data protection. LucidFlash is a unified storage solution that combines flash memory with high-speed 10Gbit Ethernet interfaces to converge storage, backup, and disaster recovery over iSCSI, NFS, and CIFS protocols. Offering high IOPS at sub-millisecond latency, LucidFlash accelerates I/O-intensive workloads and increases the performance for business-critical enterprise applications.

Why does storage have to be so complicated? RAID Management. Performance tuning. Tiering. Caching. Isn’t there a better way? Absolutely – LucidFlash SS3120 All-flash NAS lets you build an IP SAN and:

    • Dramatically simplify storage management
    • Reduce latency to the millisecond
    • Achieve 10-to-1 data reduction and drive down the cost of storage with inline deduplication
    • Protect your data against drive failures and bit errors with RAID-Z and checksums
    • Allocate capacity on demand and maximize the storage of data with thin provisioning
    • Back up and replicate your data with no impact on performance with unlimited snapshots

The LucidFlash SS3120 NAS is powered by the LucidNAS storage software and features ZFS filesystem support which includes data integrity protection, periodic snapshots, automatic repair, and RAID-Z to help manage and store your critical files safely and corruption-free. By combining increased throughput and decreased latency with enterprise class reliability, the LucidFlash helps you boost productivity and improve core operations that depend on applications where responsiveness drives the bottom line.

If you are looking to make all flash the core of your primary storage needs, LucidFlash NAS delivers significant performance advantages across varying workloads in business and mission critical environments.

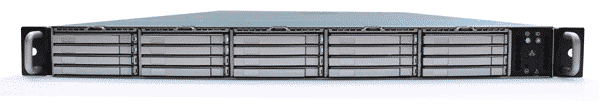

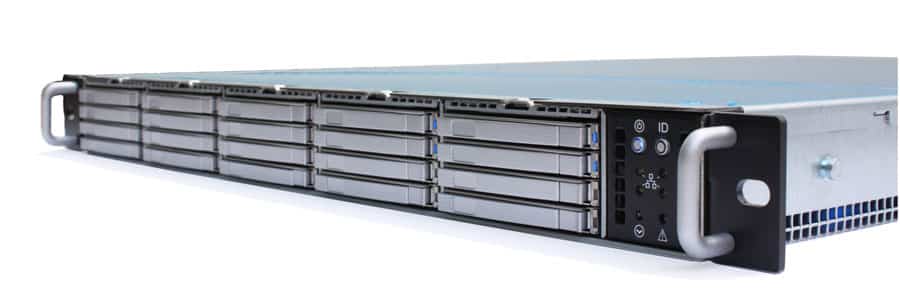

LucidFlash SS3120 20-bay Rackmount All-flash NAS



LucidFlash SS3120 All Flash NAS Solid State of Performance

PRODUCT IMAGES



  • Twenty drive bays – up to 20TB of data storage capacity
  • Software mirroring, RAIDZ, RAIDZ2, or RAIDZ3 configuration
  • 64-bit Quad-Core Intel Xeon processor
  • 16GB of DDR3 memory upgradeable to 256GB
  • Dual 10GbE Network interfaces
  • Quad 1GbE Network interfaces
  • Optional 40Gbit Infiniband
  • Dual Redundant 400W High-Efficiency power supplies
  • Unified Storage – iSCSI block-level and SMB CIFS / NFS file-level access
  • Simultaneous support for Windows, UNIX, and Apple shares
  • 1U / 20 Bay Expandable Unified Storage NAS
  • Single Intel® Xeon® processor E5-2600 family

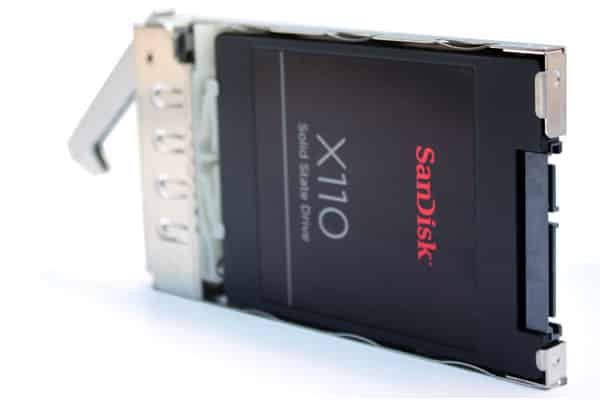

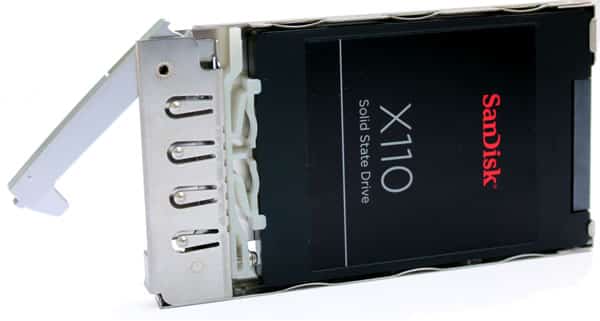

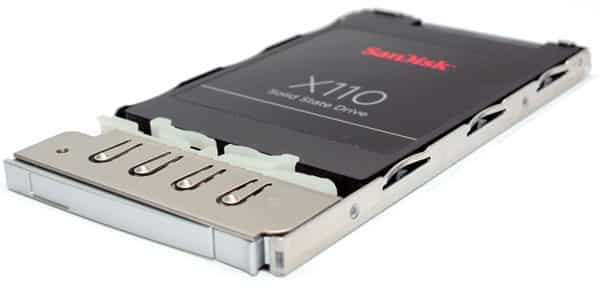

  • 20 Hot-swap 2.5″ SAS2 / SATA3 SSD Bays with tool-less trays
  • IT mode/HBA with support up to 122 Drives
  • 8 DIMMs support up to 256GB DDR3 1600MHz reg. ECC memory
  • Two (x16) and one (x8) PCI-E 3.0 expansion slots

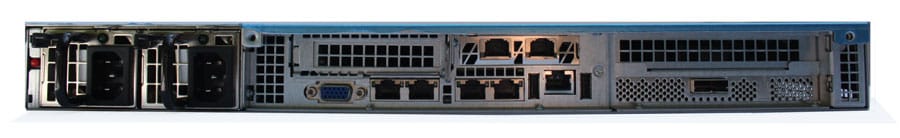

  • I/O ports: 2x 10GbE, 4x 1GbE, 1 Video, 1 COM/Serial, 2x USB 2.0
  • 3 heavy duty fans w/ optimal fan speed control
  • 400W Redundant Platinum Level Power Supplies
Software Specifications
Filesystem• 128-bit Zettabyte File System
• Unlimited filesizes
• Unlimited snapshots
• Copy-on-write clones
Data Protection• Multiple RAID Protections – Striping, N-way mirroring, RAID-Z(single parity), RAID-Z2(double parity), RAID-Z3 (triple parity)
• File cloning
• End-to-end checksumming
Hardware Support• SAS & SATA Drive Support (traditional and solid state/flash)
• Hot Spare Drive Support
• SMP—Multiple CPU / Multiple Core Support
• Gigabit and 10 Gigabit Ethernet Support
• Multiple Load Balancing / Failover NIC Support
• Infiniband Support
Network Protocols• NFS (UNIX-based clients)
• CIFS/SMB (Windows-based clients)
• AFP (Apple-based clients)
• iSCSI (block level access / Storage Area Network)
• HTTP / SSH / FTP / SMTP
Hardware Technical Specifications
Chassis
Form Factor1U Rackmount
Processor/Cache
CPUIntel® Xeon® processor E5-2600 v2 or E5-1600 v2
Single Socket R LGA 2011
CacheUp to 20MB
System BusQPI up to 8 GT/s
System Memory
Memory Capacity8 x 240-pin DDR3 DIMM sockets
Supports up to 256 GB DDR3 ECC Registered memory (RDIMM) 1866MT/s
Memory TypeDDR3 ECC UDIMM 1333, 1600/ RDIMM 1066,1333,1600,1866/ LRDIMM 1333, 1600, 1866
DIMM Sizes32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage1.5 V, 1.35 V
Error DetectionCorrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
ChipsetIntel® C602 Chipset
SATASATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SASSAS2 via LSI 2308; IT Mode/Pass-through
IPMISupport for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network ControllersIntel® i350 Gigabit Ethernet
Intel® x540 10GbE Dual port
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output; Jumbo Frames
1x Emulex Pilot III(dedicated IPMI)
GraphicsMatrox G200
Input / Output
Serial ATA2x SATA 3.0 ports (6Gbps)
4x SATA 2.0 ports (3Gbps)
SAS8x SAS2 ports (6Gbps)
LAN4x RJ45 Gigabit Ethernet LAN ports
2x RJ45 10 Gigabit Ethernet
JBOD1x JBOD Expansion Port
USB7x USB 2.0 ports total
(2 rear + 4 via header + 1 Type A)
VGA1x VGA port
Serial Port / Header1x Fast UART 16550 port / 1 Header
Dimensions
Width17.2" (437mm)
Height1.75" (45mm)
Depth25.5" (648mm)
Gross Weight35 lbs (15 kg)
Front Panel
ButtonsPower On/Off button
System Reset button
LEDsPower status LED
Hard drive activity LED
4x Network activity LEDs
System Overheat LED
Power fail LED
Expansion Slots
PCI-Express2x PCI-E 3.0 x16 slots 1x PCI-E 3.0 x8 slots (Low-profile)
Drive Bays
Hot-swap20x Hot-swap 2.5" SAS/SATA SSD tool-less trays
OS DriveInternal Solid State
System Cooling
Fans5x 4cm 9.5K RPM, 4-pin PWM fans
Operating Environment / Compliance
RoHSRoHS Compliant
Environmental Spec.Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

  • Databases / Database Server
  • Desktop Virtualization / VDI
  • Server Virtualization / Datastore for vmWare, Xen, VirtualBox Virtual Machines
  • Analytics
  • Real-time Applications
