Elastic Network Data Storage

Ultra-Dense 60-bay SAS/SATA Storage JBOD

The Lucid LJ-2460 chassis is an ultra-dense, cost-effective JBOD Storage Expansion that enables massive data capacity at a price/performance point per Gigabyte (GB) that will please any Chief Financial Officer.  It functions as a standalone external direct attached storage (DAS) JBOD using 6Gbit serial attached SCSI (SAS) host connection with up to 60 x 3.5” form factor SAS and/or SATA Hard Disk Drives (HDDs) per 4U enclosure. LJ-2460 is a storage infrastructure building block that can be zoned to up to four different DAS Hosts. Additional JBODs can be daisy chained to create and support  massive data storage pools.

LJ-2460 Enterprise 60-bay JBOD

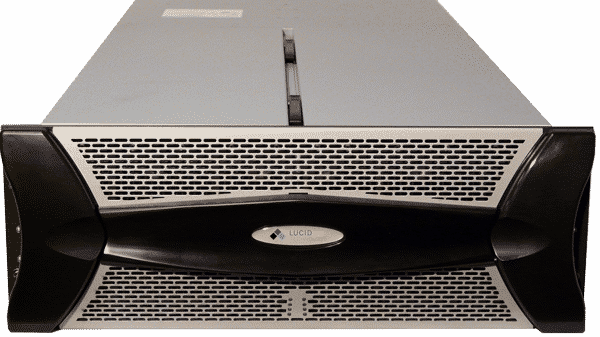

60-bay JBOD enclosure front view Big storage for big data.



PRODUCT IMAGES

FeaturesBenefits
FeaturesBenefits
Single I/O controller or Dual I/O controller mode of operation for redundant failoverHigh availability and redundancy
Hot-pluggable I/O controller(s) and dual redundant high efficiency power/cooling (APC) modulesReliability and ease of servicing in the field

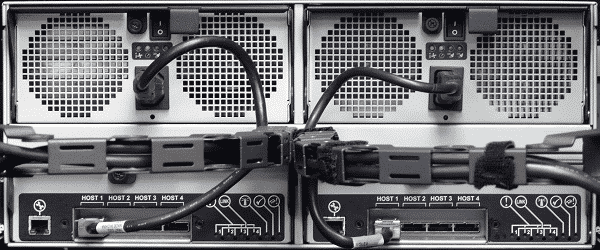

Four SFF-8088 6Gb/sec SAS 2.0 host and expansion connections per SAS I/O ControllerHigh performance with 6Gb/s data transfer rates
Up to 60 SAS/SATA HDDs or 120TB capacity (using 2.0TB SAS/SATA HDD)Space saving and power saving design
SAS daisy-chain expansion up to four JBODs via SFF-8088 SAS cablesNearly limitless capacity expansion
Modular design increases product configuration flexibilility
SAS Point-to-point connectivity isolates drive failures, increases reliability and fault tolerance, and improves performance
Supports major operating systems
Multiple Drive partitioning/split-bus zoning modes
Three-year standard warranty
Technical Specifications
Technical Specifications
IO ControllerSingle or Dual 6Gb/s SAS 2.0
Storage Connectivity; Data Transfer Rates8 ports, 6Gb/s SAS 2.0 Compliant
Host and Expansion InterfacesFour 6Gb/s SAS 4x wide ports via four SFF-8088 per IO controller

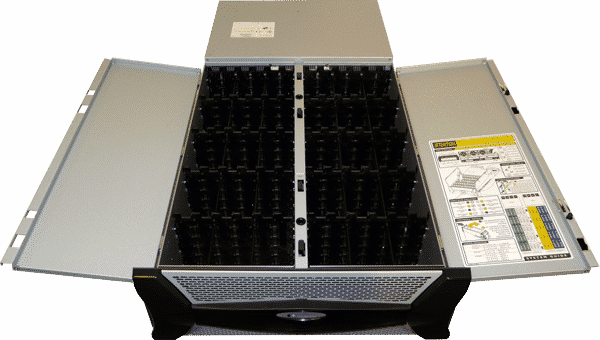

Disk Drive SupportHot-swap 60 x 6Gb/s or 3Gb/s SAS and SATA Drives
Power Supplies and Cooling FansRedundant ( 1+1 ) Dual output up to 1200W
Two redundant fans per power module
LED Indicators- Identify Enclosure
- Power On
- Activity / Fault for each Individual Drive Carrier
Rail Extension Kit- Regular: 25"
- Extended: 33.5"
Daisy-Chain ExpansionUp to Four JBOD Storage Enclosures / 240 Drives
Dimensions and Weight6.9” H x 16.56” W x 35.1” D
Bare Enclosure: 88lbs
Packaged Enclosure: 137lbs (without disk drives)
Warranty3 years / advanced replacement
Operating EnvironmentTemperature: 5º to 35º C
Temperature gradient: 20º C per hour
Relative Humidity: 10% to 80% (non-condensing)
Humidity gradient: 10% per our
Altitude: -200 to 10,000 ft.
Shock: 5G at 11ms, ½ sine wave pulse
Vibration: 0.15G at 5Hz to 500Hz
